Why Don’t Cranes Topple Over?

Why Don’t Cranes Topple Over?

Why Don’t Cranes Topple Over? A crane is a type of machine, generally equipped with a hoist rope, wire ropes or chains, and sheaves, that can be used both to lift and lower materials and to move them horizontally. It is mainly used for lifting heavy things and transporting them to other places.

The device uses one or more simple machines to create mechanical advantage and thus move loads beyond the normal capability of a human. Cranes are commonly employed in the transport industry for the loading and unloading of freight, in the construction industry for the movement of materials, and in the manufacturing industry for the assembling of heavy equipment.

Cranes do not topple over because their jibs or booms are counter balanced at the opposite end from the lift load, thus keeping the centre of gravity over the base. The first cranes were simply long poles fixed in the ground at an angle, with a pulley at the top through which passed a rope. They were called “cranes” because they looked rather like the neck of the bird with the same name.

The derrick crane, which looks like a gallows, is named after Dick Derrick, a 17th Century hangman. In the middle of the 18th Century, steam engines began to be used on cranes, while today the lifting may be done by varieties of power. Jib cranes may be portable, being mounted on a wheeled carriage, or they may be self-propelled.

Gantry cranes with long booms are used for unloading ships while overhead cranes are used in factories. Goliath cranes, with steel towers at either side, capable of lifting 200 tons are used at some atomic power stations. There are three major considerations in the design of cranes. First, the crane must be able to lift the weight of the load; second, the crane must not topple; third, the crane must not rupture.

For stability, the sum of all moments about the base of the crane must be close to zero so that the crane does not overturn. In practice, the magnitude of load that is permitted to be lifted (called the “rated load” in the US) is some value less than the load that will cause the crane to tip, thus providing a safety margin.

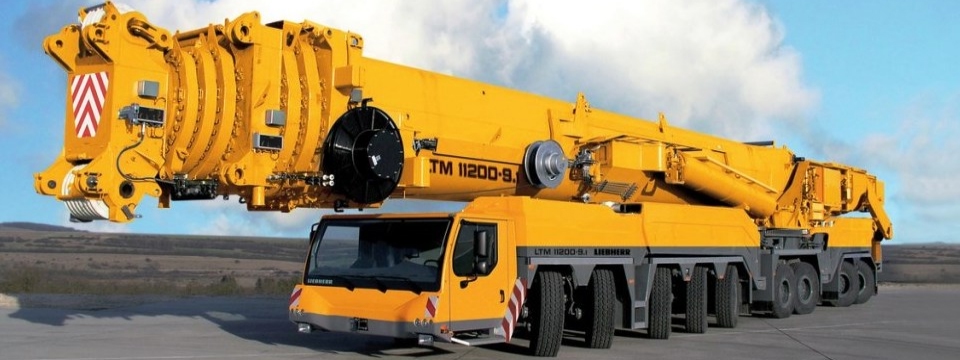

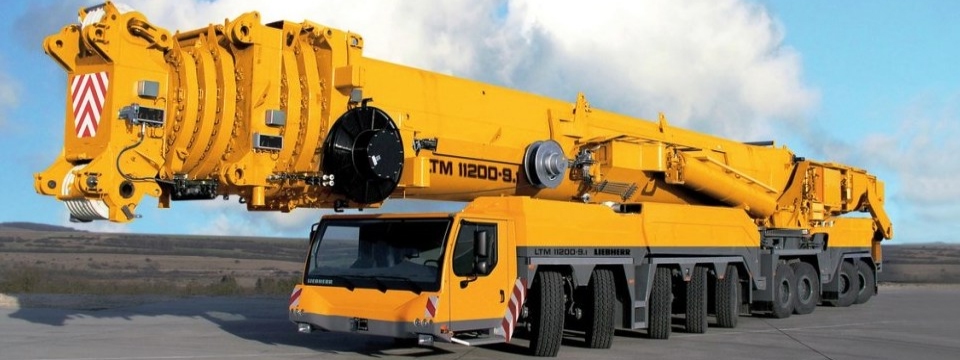

mobile and locomotive cranes

Under US standards for mobile cranes, the stability-limited rated load for a crawler crane is 75% of the tipping load. The stability-limited rated load for a mobile crane supported on outriggers is 85% of the tipping load. These requirements, along with additional safety-related aspects of crane design, are established by the American Society of Mechanical Engineers in the volume ASME B30.5-2014 Mobile and Locomotive Cranes.

Standards for cranes mounted on ships or offshore platforms are somewhat stricter because of the dynamic load on the crane due to vessel motion. Additionally, the stability of the vessel or platform must be considered. For stationary pedestal or kingpost mounted cranes, the moment created by the boom, jib, and load is resisted by the pedestal base or kingpost. Stress within the base must be less than the yield stress of the material or the crane will fail.

The first known construction cranes were invented by the Ancient Greeks and were powered by men or beasts of burden, such as donkeys. These cranes were used for the construction of tall buildings. Larger cranes were later developed, employing the use of human treadwheels, permitting the lifting of heavier weights. In the High Middle Ages, harbour cranes were introduced to load and unload ships and assist with their construction – some were built into stone towers for extra strength and stability. The earliest cranes were constructed from wood, but cast iron, iron and steel took over with the coming of the Industrial Revolution.

For many centuries, power was supplied by the physical exertion of men or animals, although hoists in watermills and windmills could be driven by the harnessed natural power. The first ‘mechanical’ power was provided by steam engines, the earliest steam crane being introduced in the 18th or 19th century, with many remaining in use well into the late 20th century. Modern cranes usually use internal combustion engines or electric motors and hydraulic systems to provide a much greater lifting capability than was previously possible, although manual cranes are still utilized where the provision of power would be uneconomic.

Cranes exist in an enormous variety of forms – each tailored to a specific use. Sizes range from the smallest jib cranes, used inside workshops, to the tallest tower cranes, used for constructing high buildings. Mini-cranes are also used for constructing high buildings, in order to facilitate constructions by reaching tight spaces.

Finally, we can find larger floating cranes, generally used to build oil rigs and salvage sunken ships. Some lifting machines do not strictly fit the above definition of a crane, but are generally known as cranes, such as stacker cranes and loader cranes.

Content for this question contributed by Michele Mazanec, resident of Sagamore Hills, Summit County, Ohio, USA
